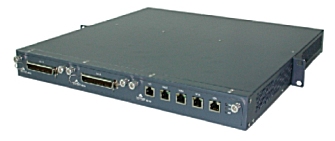

48 Port Carrier Class Gateway Supporting 48 Simultaneous Calls

The wonderful gateway for IP-PBX and residential VoIP application
High voice quality, Highly compact yet truly reliable User -friendly provision tools. Featuring fashion ringing tones, auto dialing, dual phone numbers, and RADIUS billing interface. Advanced VoIP technologies including SIP/MGCP protocols, iLBC.

MInt-AG48S VoIP Access Gateway is a carrier class VoIP gateway. Carriers and enterprises can use it to provide regular phone, fax, and IP Centrex services through broadband networks. MInt-AG48S guarantees a smooth transition to NGN (Next Generation Network), therefore protects your long-term investments. When fully configured, one MInt-AG48S system supports up to 48 FXS lines.
MInt-AG48S is designed to meet the VoIP demands of telecommunications carriers, value-added service providers, and mid- to -large -sized enterprises. Installed in a highly compact 1U chassis, MInt-AG48S is equipped with one control module, two card slots (for two FXS cards with 24 ports each), and two power feeds (so end-users have the options to use one or two 70W power supply to protect system from power surge and to provide redundancy).

Features:
. Chip TIC5509

. 48 analog FXS ports (RJ-11),
. UP to 5 * RJ-45 ports for 100Base-T Ethernet connection
. Supports Session Initiation Protocol (SIP) & MGCP
. Supports multiple voice compression G.711, G.726, G.729, and G.723.1
. Web-based configuration through a built-in web server
. Telephone key pad configuration via voice prompts
. Supports DTMF tone detection and generation
. Password protected access and configuration
. Supports auto-provisioning

Interface:	48 FXS ANALOG PORTS UP TO 5 ETHERNET PORTS, One Power Port
Simultaneity Calling:	48 Ports
Voice Protocol:	Session Initiation Protocol (SIP v2), MGCP Supported.
Voice Codecs:	Voice codec: G.711, G.729A, G .723.1, GSM, and iLBC Echo cancellation: G.168; Tail Len gth: 8/16/32ms, Dynamic Jitter buffer; Voice Activity Detection (VAD)
Call Control:	Calling/Called Number Mapping, Line Hunt.
End User Features:	Caller ID, Call Forwarding, Call Waiting, Hotline, Do Not disturb.
Fax:	T.30, T.38 FAX RELAY
Billing:	RADIUS interface, Polarity reverse
Remote Provisioning:	HTTP/WEB mode; EMS remote configuration remote software upgrade, alarm, and data collection
Enviromental:
Dimensions:	44 × 44 × 44, 1 U height, 19’c
Unit Weight:	9 kg
Power Input Operating:	110-240 AC, 70W
Temp °C	0ºC to 40ºC
